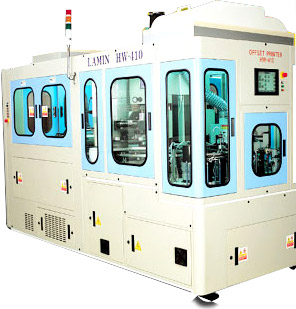

Wet-on-Wet printing |
|
4 colors waterless offset printing unit. |
|
2 colors screen printing stations |
|
3 UV curing systems |
|
Automatic special handling system for loading and unloading |
|
Fast waterless plate changing within 30 seconds |
|
Throughput : 3,000 discs/hour |
|
Small dimension 3,220L x 1,550W x 2,400H mm |
|
Print check, ID code check, 8cm and CD card (option) |
| |
|
|
|
|
| Printing Process |
Wet - on - wet printing 4 colors 1 UV
|
1-color screen print ( for background ) |
|
4-color waterless offset print |
|
1-color screen print ( for clear topcoat ) |
|
| Max. Speed |
3,000 pcs / per hour |
| Screen Frame |
318 x 278 mm |
| Offset Plate |
690 L x 204 W x 0.24 T mm |
| Curing System |
3 UV systems |
| Frame Adjustment |
Electric Mode |
| Controlled By |
Servo motor |
| Electricity |
220V, 60 Hz , 3 phase + Ground or customer demand |
| Compressed Air |
20 m3/hr 0.49 Mpa |
| Size |
3,220 mm x 1,550 mm x 2,400 mm (L x W x H) |
| Net Weight |
5,600 Kg |
|
|
